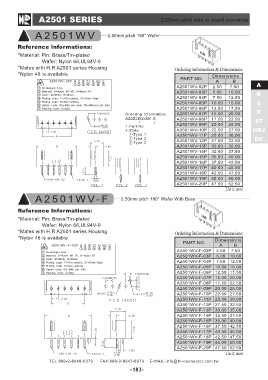

A2501 SERIES
A2501WV
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0 A2501WV-XP ＊
*Mates with H.R A2501 series Housing
*Nylon 46 is available
A2501WV-F
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A2501 series Housing
*Nylon 46 is available
TEL:886-2-8648-0379 FAX:886-2-8647-8373
-183-
2.50mm pitch wire to board connector
2.50mm pitch 180° Wafer
Ordering Information & Dimensions:
Ordering Information: PART NO. Dimensions A
AB B
A2501WV-02P C
12 A2501WV-03P 2.50 7.50 F
A2501WV-04P 5.00 10.00 ST
1.Part No. A2501WV-05P 7.50 12.50 HRJ
2.Style: A2501WV-06P 10.00 15.00 DC
A2501WV-07P 12.50 17.50
1-Type 1 A2501WV-08P 15.00 20.00
2-Type 2 A2501WV-09P 17.50 22.50
3-Type 3 A2501WV-10P 20.00 25.00
A2501WV-11P 22.50 27.50
A2501WV-12P 25.00 30.00
A2501WV-13P 27.50 32.50
A2501WV-14P 30.00 35.00
A2501WV-15P 32.50 37.50
A2501WV-16P 35.00 40.00
A2501WV-17P 37.50 42.50
A2501WV-18P 40.00 45.00
A2501WV-19P 42.50 47.50
A2501WV-20P 45.00 50.00
47.50 52.50
Unit:mm
2.50mm pitch 180° Wafer With Boss
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A2501WV-F-02P 2.50 7.50
A2501WV-F-03P 5.00 10.00
A2501WV-F-04P 7.50 12.50
A2501WV-F-05P 10.00 15.00
A2501WV-F-06P 12.50 17.50
A2501WV-F-07P 15.00 20.00
A2501WV-F-08P 17.50 22.50
A2501WV-F-09P 20.00 25.00
A2501WV-F-10P 22.50 27.50
A2501WV-F-11P 25.00 30.00
A2501WV-F-12P 27.50 32.50
A2501WV-F-13P 30.00 35.00
A2501WV-F-14P 32.50 37.50
A2501WV-F-15P 35.00 40.00
A2501WV-F-16P 37.50 42.50
A2501WV-F-17P 40.00 45.00
A2501WV-F-18P 42.50 47.50
A2501WV-F-19P 45.00 50.00
A2501WV-F-20P 47.50 52.50
Unit:mm
E-MAIL:info@hr-connector.com.tw
