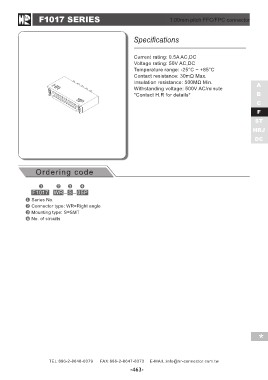

F1017 SERIES 1.00mm pitch FFC/FPC connector
Ordering code Specifications
F1017 WR - S - 05P Current rating: 0.5A AC,DC A
Voltage rating: 50V AC,DC B
Series No. Temperature range: -25°C ~ +85°C C
Connector type: WR=Right angle Contact resistance: 30mΩ Max. F
Mounting type: S=SMT Insulation resistance: 500MΩ Min. ST
No. of circuits Withstanding voltage: 500V AC/minute HRJ
*Contact H.R for details* DC
*
