P. 60

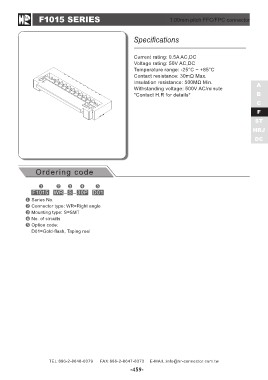

F1015 SERIES                  1.00mm pitch FFC/FPC connector

 Ordering code                  Specifications

F1015 WR - S - 30P D01          Current rating: 0.5A AC,DC                  A
                                Voltage rating: 50V AC,DC                   B
Series No.                      Temperature range: -25°C ~ +85°C            C
Connector type: WR=Right angle  Contact resistance: 30mΩ Max.               F
Mounting type: S=SMT            Insulation resistance: 500MΩ Min.          ST
No. of circuits                 Withstanding voltage: 500V AC/minute      HRJ
Option code:                    *Contact H.R for details*                  DC
D01=Gold-flash, Taping reel

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

                                      -459-
