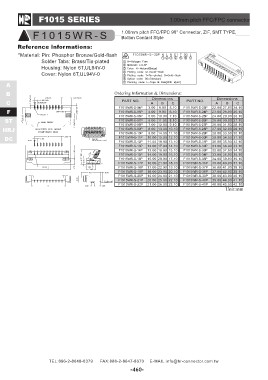

F1015 SERIES 1.00mm pitch FFC/FPC connector

F1015WR-S 1.00mm pitch FFC/FPC 90° Connector, ZIF, SMT TYPE,
Botton Contact Style

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Tin-plated
Housing: Nylon 6T,UL94V-0
Cover: Nylon 6T,UL94V-0

A Ordering Information & Dimensions:
B
C PART NO. Dimensions PART NO. Dimensions
F ABC ABC
ST F1015WR-S-04P 3.00 8.90 5.10 F1015WR-S-23P 22.00 27.90 24.10
HRJ F1015WR-S-05P 4.00 9.90 6.10 F1015WR-S-24P 23.00 28.90 25.10
DC F1015WR-S-06P 5.00 10.90 7.10 F1015WR-S-25P 24.00 29.90 26.10
F1015WR-S-07P 6.00 11.90 8.10 F1015WR-S-26P 25.00 30.90 27.10
F1015WR-S-08P 7.00 12.90 9.10 F1015WR-S-27P 26.00 31.90 28.10
F1015WR-S-09P 8.00 13.90 10.10 F1015WR-S-28P 27.00 32.90 29.10
F1015WR-S-10P 9.00 14.90 11.10 F1015WR-S-29P 28.00 33.90 30.10
F1015WR-S-11P 10.00 15.90 12.10 F1015WR-S-30P 29.00 34.90 31.10
F1015WR-S-12P 11.00 16.90 13.10 F1015WR-S-31P 30.00 35.90 32.10
F1015WR-S-13P 12.00 17.90 14.10 F1015WR-S-32P 31.00 36.90 33.10
F1015WR-S-14P 13.00 18.90 15.10 F1015WR-S-33P 32.00 37.90 34.10
F1015WR-S-15P 14.00 19.90 16.10 F1015WR-S-34P 33.00 38.90 35.10
F1015WR-S-16P 15.00 20.90 17.10 F1015WR-S-35P 34.00 39.90 36.10
F1015WR-S-17P 16.00 21.90 18.10 F1015WR-S-36P 35.00 40.90 37.10
F1015WR-S-18P 17.00 22.90 19.10 F1015WR-S-37P 36.00 41.90 38.10
F1015WR-S-19P 18.00 23.90 20.10 F1015WR-S-38P 37.00 42.90 39.10
F1015WR-S-20P 19.00 24.90 21.10 F1015WR-S-39P 38.00 43.90 40.10
F1015WR-S-21P 20.00 25.90 22.10 F1015WR-S-40P 39.00 44.90 41.10
F1015WR-S-22P 21.00 26.90 23.10 F1015WR-S-41P 40.00 45.90 42.10

Unit:mm
