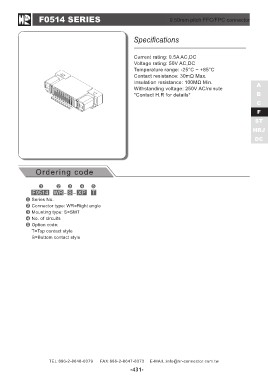

F0514 SERIES 0.50mm pitch FFC/FPC connector
Ordering code Specifications
F0514 WR - S - XP T Current rating: 0.5A AC,DC A
Voltage rating: 50V AC,DC B
Series No. Temperature range: -25°C ~ +85°C C
Connector type: WR=Right angle Contact resistance: 30mΩ Max. F
Mounting type: S=SMT Insulation resistance: 100MΩ Min. ST
No. of circuits Withstanding voltage: 250V AC/minute HRJ
Option code: *Contact H.R for details* DC
T=Top contact style
B=Bottom contact style
