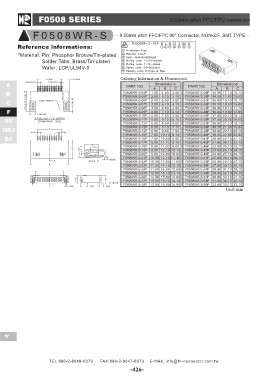

F0508 SERIES 0.50mm pitch FFC/FPC connector

F0508WR-S 0.50mm pitch FFC/FPC 90° Connector, NON-ZIF, SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Solder Tabs: Brass/Tin-plated
Wafer: LCP,UL94V-0

Ordering Information & Dimensions:

A PART NO. Dimensions PART NO. Dimensions
B
C F0508WR-S-04P ABC F0508WR-S-29P ABC
F F0508WR-S-05P F0508WR-S-30P
ST F0508WR-S-06P 1.50 4.60 2.60 F0508WR-S-31P 14.00 17.10 15.10
HRJ F0508WR-S-07P 2.00 5.10 3.10 F0508WR-S-32P 14.50 17.60 15.60
DC F0508WR-S-08P 2.50 5.60 3.60 F0508WR-S-33P 15.00 18.10 16.10
F0508WR-S-09P 3.00 6.10 4.10 F0508WR-S-34P 15.50 18.60 16.60
F0508WR-S-10P 3.50 6.60 4.60 F0508WR-S-35P 16.00 19.10 17.10
F0508WR-S-11P 4.00 7.10 5.10 F0508WR-S-36P 16.50 19.60 17.60
F0508WR-S-12P 4.50 7.60 5.60 F0508WR-S-37P 17.00 20.10 18.10
F0508WR-S-13P 5.00 8.10 6.10 F0508WR-S-38P 17.50 20.60 18.60
F0508WR-S-14P 5.50 8.60 6.60 F0508WR-S-39P 18.00 21.10 19.10
F0508WR-S-15P 6.00 9.10 7.10 F0508WR-S-40P 18.50 21.60 19.60
F0508WR-S-16P 6.50 9.60 7.60 F0508WR-S-41P 19.00 22.10 20.10
F0508WR-S-17P 7.00 10.10 8.10 F0508WR-S-43P 19.50 22.60 20.60
F0508WR-S-18P 7.50 10.60 8.60 F0508WR-S-45P 20.00 23.10 21.10
F0508WR-S-19P 8.00 11.10 9.10 F0508WR-S-47P 21.00 24.10 22.10
F0508WR-S-20P 8.50 11.60 9.60 F0508WR-S-49P 22.00 25.10 23.10
F0508WR-S-21P 9.00 12.10 10.10 F0508WR-S-51P 23.00 26.10 24.10
F0508WR-S-22P 9.50 12.60 10.60 F0508WR-S-53P 24.00 27.10 25.10
F0508WR-S-23P 10.00 13.10 11.10 F0508WR-S-55P 25.00 28.10 26.10
F0508WR-S-24P 10.50 13.60 11.60 F0508WR-S-57P 26.00 29.10 27.10
F0508WR-S-25P 11.00 14.10 12.10 F0508WR-S-59P 27.00 30.10 28.10
F0508WR-S-26P 11.50 14.60 12.60 F0508WR-S-61P 28.00 31.10 29.10
F0508WR-S-27P 12.00 15.10 13.10 F0508WR-S-63P 29.00 32.10 30.10
F0508WR-S-28P 12.50 15.60 13.60 F0508WR-S-65P 30.00 33.10 31.10
13.00 16.10 14.10 31.00 34.10 32.10
13.50 16.60 14.60 32.00 35.10 33.10

Unit:mm

*
