P. 505

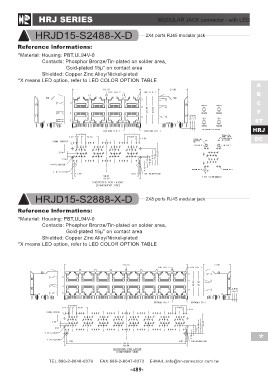

HRJ SERIES MODULAR JACK connector - with LED
HRJD15-S2488-X-D 2X4 ports RJ45 modular jack A
B
Reference lnformations: C
F
*Material: Housing: PBT,UL94V-0 ST
Contacts: Phosphor Bronze/Tin-plated on solder area, HRJ
Gold-plated 15µ" on contact area DC
Shielded: Copper Zinc Alloy/Nickel-plated
*X means LED option, refer to LED COLOR OPTION TABLE
HRJD15-S2888-X-D 2X8 ports RJ45 modular jack
Reference lnformations:
*Material: Housing: PBT,UL94V-0
Contacts: Phosphor Bronze/Tin-plated on solder area,
Gold-plated 15µ" on contact area
Shielded: Copper Zinc Alloy/Nickel-plated
*X means LED option, refer to LED COLOR OPTION TABLE
*
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-489-
