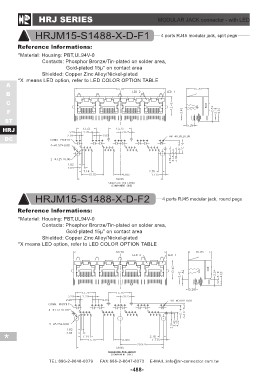

HRJ SERIES           MODULAR JACK connector - with LED

         HRJM15-S1488-X-D-F1 4 ports RJ45 modular jack, split pegs

        Reference lnformations:
         *Material: Housing: PBT,UL94V-0

                        Contacts: Phosphor Bronze/Tin-plated on solder area,
                                      Gold-plated 15µ" on contact area

                        Shielded: Copper Zinc Alloy/Nickel-plated
         *X means LED option, refer to LED COLOR OPTION TABLE
  A

  B

  C

  F

 ST

HRJ

 DC

        HRJM15-S1488-X-D-F2 4 ports RJ45 modular jack, round pegs

   Reference lnformations:

   *Material: Housing: PBT,UL94V-0
                 Contacts: Phosphor Bronze/Tin-plated on solder area,
                                Gold-plated 15µ" on contact area
                 Shielded: Copper Zinc Alloy/Nickel-plated

   *X means LED option, refer to LED COLOR OPTION TABLE

*

   TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
