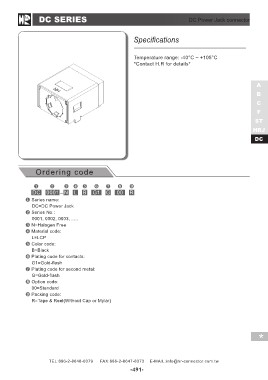

P. 507
DC SERIES DC Power Jack connector
Specifications
Temperature range: -40°C ~ +105°C
*Contact H.R for details*
A
B
C
F
ST
HRJ
DC
Ordering code
DC 0001 - N L B G1 G 00 R
Series name:
DC=DC Power Jack
Series No.:
0001, 0002, 0003, .....
N=Halogen Free
Material code:
L=LCP
Color code:
B=Black
Plating code for contacts:
G1=Gold-flash
Plating code for second metal:
G=Gold-flash
Option code:
00=Standard
Packing code:
R=Tape & Reel(Without Cap or Mylar)
*
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-491-
