P. 501

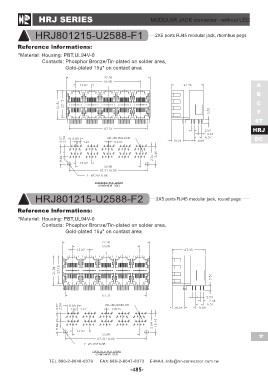

HRJ SERIES MODULAR JACK connector - without LED
HRJ801215-U2588-F1 2X5 ports RJ45 modular jack, rhombus pegs
Reference lnformations:
*Material: Housing: PBT,UL94V-0
Contacts: Phosphor Bronze/Tin-plated on solder area,
Gold-plated 15µ" on contact area
A
B
C
F
ST
HRJ
DC
HRJ801215-U2588-F2 2X5 ports RJ45 modular jack, round pegs
Reference lnformations:
*Material: Housing: PBT,UL94V-0
Contacts: Phosphor Bronze/Tin-plated on solder area,
Gold-plated 15µ" on contact area
*
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-485-
