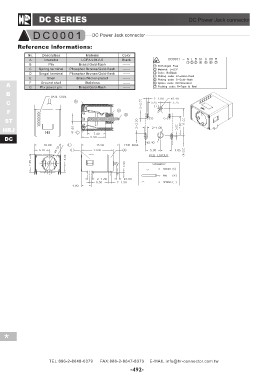

DC SERIES DC Power Jack connector
D C 0 0 0 1 DC Power Jack connector
Reference lnformations:
No. Description Material Color
Black
A Insulator LCP,UL94V-0 ------
------
B Pin Brass/Gold-flash ------
------
C Spring terminal Phosphor Bronze/Gold-flash ------
------
D Singal terminal Phosphor Bronze/Gold-flash
E Shell Brass/Nickel-plated
A F Ground shell Stainless
B
C G Fix power pin Brass/Gold-flash
F
ST
HRJ
DC
*
