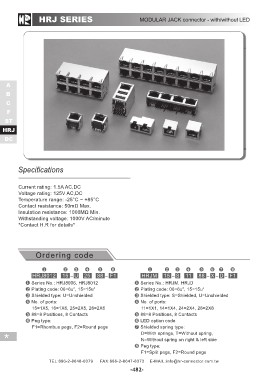

HRJ SERIES                                           MODULAR JACK connector - with/without LED

                                                  Specifications

  A                                               Standards
  B
  C
  F
 ST
HRJ
 DC

     Specifications

         Current rating: 1.5A AC,DC
         Voltage rating: 125V AC,DC
         Temperature range: -25°C ~ +85°C
         Contact resistance: 50mΩ Max.
         Insulation resistance: 1000MΩ Min.
         Withstanding voltage: 1000V AC/minute
         *Contact H.R for details*

Ordering code

               HRJ8012 15 - U 25 88 - F1          HRJM 15 - S 11 88 - X - D - F1

                  Series No.: HRJ8006, HRJ8012    Series No.: HRJM, HRJD
                  Plating code: 06=6u", 15=15u"   Plating code: 06=6u", 15=15u"
                  Shielded type: U=Unshielded     Shielded type: S=Shielded, U=Unshielded
                  No. of ports:                   No. of ports:
                  15=1X5, 16=1X6, 25=2X5, 26=2X6  11=1X1, 14=1X4, 24=2X4, 28=2X8
                  88=8 Positions, 8 Contacts      88=8 Positions, 8 Contacts
                  Peg type:                       LED option code
                  F1=Rhombus pegs, F2=Round pegs  Shielded spring type:
                                                  D=With springs, T=Without spring,
*                                                 N=Without spring on right & left side
                                                  Peg type:
                                                  F1=Split pegs, F2=Round pegs

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
