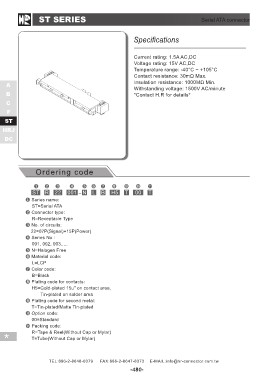

ST SERIES Serial ATA connector

A Specifications
B
C Current rating: 1.5A AC,DC
F Voltage rating: 15V AC,DC
ST Temperature range: -40°C ~ +105°C
HRJ Contact resistance: 30mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1500V AC/minute
*Contact H.R for details*

Ordering code

11

ST R 22 001 - N L B H5 T 00 T

Series name:
ST=Serial ATA
Connector type:
R=Receptacle Type
No. of circuits:
22=07P(Signal)+15P(Power)
Series No.:
001, 002, 003.....
N=Halogen Free
Material code:
L=LCP
Color code:
B=Black
Plating code for contacts:
H5=Gold-plated 15u" on contact area,

Tin-plated on solder area
Plating code for second metal:
T=Tin-plated/Matte Tin-plated
Option code:
00=Standard
11 Packing code:

* R=Tape & Reel(Without Cap or Mylar)
T=Tube(Without Cap or Mylar)
