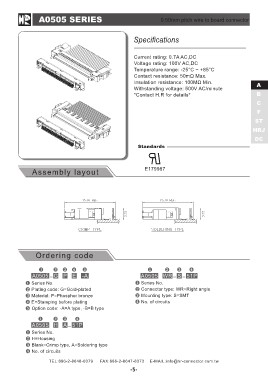

A0505 SERIES                      0.50mm pitch wire to board connector
Assembly layout
                                    Specifications

                                    Current rating: 0.7A AC,DC              A
                                    Voltage rating: 100V AC,DC              B
                                    Temperature range: -25°C ~ +85°C        C
                                    Contact resistance: 50mΩ Max.           F
                                    Insulation resistance: 100MΩ Min.      ST
                                    Withstanding voltage: 500V AC/minute  HRJ
                                    *Contact H.R for details*              DC

                                      Standards

                                    E179987

Ordering code

A0505 - G P E -A                    A0505 WR - S - 51P

Series No.                          Series No.
Plating code: G=Gold-plated         Connector type: WR=Right angle
Material: P=Phosphor bronze         Mounting type: S=SMT
E=Stamping before plating           No. of circuits
Option code: -A=A type, -B=B type

A0505 H A - 51P

Series No.
H=Housing
Blank=Crimp type, A=Soldering type
No. of circuits

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
