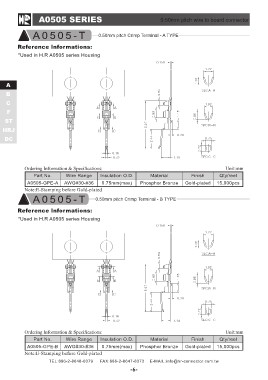

A0505 SERIES 0.50mm pitch wire to board connector

A0505-T 0.50mm pitch Crimp Terminal - A TYPE

Reference lnformations:
*Used in H.R A0505 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Gold-plated
A0505-GPE-A AWG#30-#36 0.75mm(max) Phosphor Bronze

Note:E-Stamping before Gold-plated

A 0 5 0 5 - T 0.50mm pitch Crimp Terminal - B TYPE

Reference lnformations:
*Used in H.R A0505 series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish

A0505-GPE-B AWG#30-#36 0.75mm(max) Phosphor Bronze Gold-plated 15,000pcs
Note:E-Stamping before Gold-plated

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
