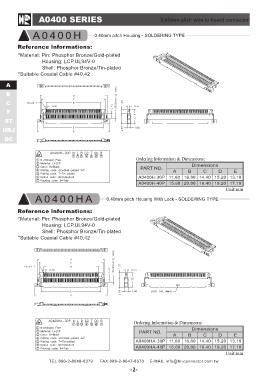

A0400 SERIES 0.40mm pitch wire to board connector

A0400H 0.40mm pitch Housing - SOLDERING TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-plated
Housing: LCP,UL94V-0
Shell: Phosphor Bronze/Tin-plated

*Suitable Coaxial Cable #40,42

A
B
C
F
ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. A Dimensions E
BCD

A0400H-30P 11.60 16.80 14.40 15.20 13.10

A0400H-40P 15.60 20.80 18.40 19.20 17.10

Unit:mm

A0400HA 0.40mm pitch Housing With Lock - SOLDERING TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-plated
Housing: LCP,UL94V-0
Shell: Phosphor Bronze/Tin-plated

*Suitable Coaxial Cable #40,42

Ordering Information & Dimensions:

PART NO. A Dimensions E
BCD

A0400HA-30P 11.60 16.80 14.40 15.20 13.10

A0400HA-40P 15.60 20.80 18.40 19.20 17.10

Unit:mm
