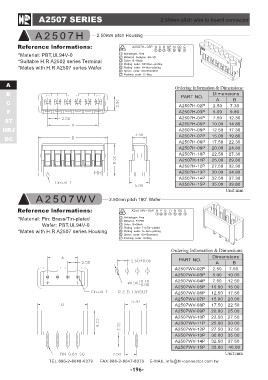

A2507 SERIES 2.50mm pitch wire to board connector

A2507H 2.50mm pitch Housing

Reference lnformations:

*Material: PBT,UL94V-0
*Suitable H.R A2502 series Terminal
*Mates with H.R A2507 series Wafer

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ A2507H-02P 2.50 7.30
DC
A2507H-03P 5.00 9.80

A2507H-04P 7.50 12.30

A2507H-05P 10.00 14.80

A2507H-06P 12.50 17.30

A2507H-07P 15.00 19.80

A2507H-08P 17.50 22.30

A2507H-09P 20.00 24.80

A2507H-10P 22.50 27.30

A2507H-11P 25.00 29.80

A2507H-12P 27.50 32.30

A2507H-13P 30.00 34.80

A2507H-14P 32.50 37.30

A2507H-15P 35.00 39.80

Unit:mm

A2507WV 2.50mm pitch 180˚ Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: PBT,UL94V-0

*Mates with H.R A2507 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A2507WV-02P 2.50 7.50

A2507WV-03P 5.00 10.00

A2507WV-04P 7.50 12.50

A2507WV-05P 10.00 15.00

A2507WV-06P 12.50 17.50

A2507WV-07P 15.00 20.00

A2507WV-08P 17.50 22.50

A2507WV-09P 20.00 25.00

A2507WV-10P 22.50 27.50

A2507WV-11P 25.00 30.00

A2507WV-12P 27.50 32.50

A2507WV-13P 30.00 35.00

A2507WV-14P 32.50 37.50

A2507WV-15P 35.00 40.00

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-196-
