P. 209

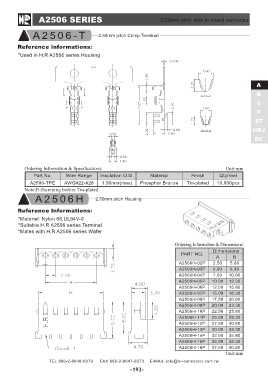

A2506 SERIES 2.50mm pitch wire to board connector
A2506-T 2.50mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A2506 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
A2506-TPE AWG#22-#28 1.90mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated
A 2 5 0 6 H 2.50mm pitch Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R A2506 series Terminal
*Mates with H.R A2506 series Wafer
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A2506H-02P 2.50 5.80
A2506H-03P 5.00 8.30
A2506H-04P 7.50 10.80
A2506H-05P 10.00 13.30
A2506H-06P 12.50 15.80
A2506H-07P 15.00 18.30
A2506H-08P 17.50 20.80
A2506H-09P 20.00 23.30
A2506H-10P 22.50 25.80
A2506H-11P 25.00 28.30
A2506H-12P 27.50 30.80
A2506H-13P 30.00 33.30
A2506H-14P 32.50 35.80
A2506H-15P 35.00 38.30
A2506H-16P 37.50 40.80
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-193-
