P. 208

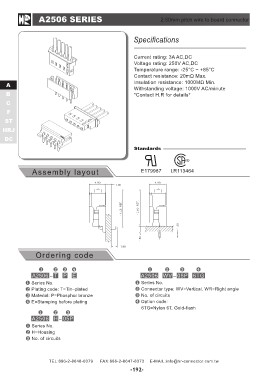

A2506 SERIES                   2.50mm pitch wire to board connector

  A                          Specifications
  B
  C                          Current rating: 3A AC,DC
  F                          Voltage rating: 250V AC,DC
 ST                          Temperature range: -25°C ~ +85°C
HRJ                          Contact resistance: 20mΩ Max.
 DC                          Insulation resistance: 1000MΩ Min.
                             Withstanding voltage: 1000V AC/minute
           Assembly layout   *Contact H.R for details*

                             Standards

                             E179987               ®

                                        LR113464

 Ordering code               A2506 WV - 05P 6TG

A2506 - T P E                Series No.
                             Connector type: WV=Vertical, WR=Right angle
Series No.                   No. of circuits
Plating code: T=Tin–plated   Option code:
Material: P=Phosphor bronze  6TG=Nylon 6T, Gold-flash
E=Stamping before plating

A2506 H - 05P

Series No.
H=Housing
No. of circuits

TEL:886-2-8648-0379          FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
