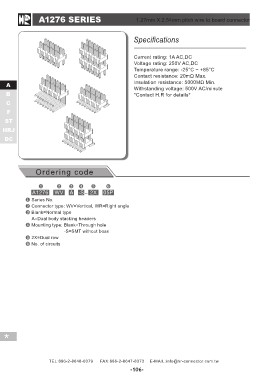

A1276 SERIES 1.27mm X 2.54mm pitch wire to board connector

A Specifications
B
C Current rating: 1A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 5000MΩ Min.
Withstanding voltage: 500V AC/minute
*Contact H.R for details*

AOsrsdeemribnlgy lcaoydoeut

A1276 WV A -S - 2X 05P

Series No.
Connector type: WV=Vertical, WR=Right angle
Blank=Normal type
A=Dual body stacking headers
Mounting type: Blank=Through hole

-S=SMT without boss
2X=Dual row
No. of circuits

*
