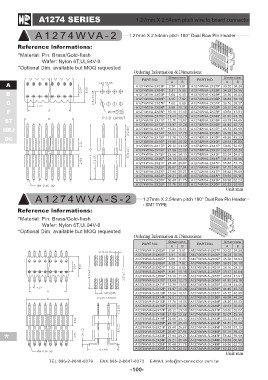

A1274 SERIES 1.27mm X 2.54mm pitch wire to board connector

A 1 2 7 4 W VA - 2 1.27mm X 2.54mm pitch 180° Dual Row Pin Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash Ordering Information & Dimensions:
Wafer: Nylon 6T,UL94V-0
PART NO. Dimensions PART NO. Dimensions
*Optional Dim. available but MOQ requested AB AB
A1274WVA-2X03P A1274WVA-2X27P
A A1274WVA-2X04P 2.54 3.81 A1274WVA-2X28P 33.02 34.29
B A1274WVA-2X05P 3.81 5.08 A1274WVA-2X29P 34.29 35.56
C A1274WVA-2X06P 5.08 6.35 A1274WVA-2X30P 35.56 36.83
F A1274WVA-2X07P 6.35 7.62 A1274WVA-2X31P 36.83 38.10
ST A1274WVA-2X08P 7.62 8.89 A1274WVA-2X32P 38.10 39.37
HRJ A1274WVA-2X09P 8.89 10.16 A1274WVA-2X33P 39.37 40.64
DC A1274WVA-2X10P 10.16 11.43 A1274WVA-2X34P 40.64 41.91
A1274WVA-2X11P 11.43 12.70 A1274WVA-2X35P 41.91 43.18
A1274WVA-2X12P 12.70 13.97 A1274WVA-2X36P 43.18 44.45
A1274WVA-2X13P 13.97 15.24 A1274WVA-2X37P 44.45 45.72
A1274WVA-2X14P 15.24 16.51 A1274WVA-2X38P 45.72 46.99
A1274WVA-2X15P 16.51 17.78 A1274WVA-2X39P 46.99 48.26
A1274WVA-2X16P 17.78 19.05 A1274WVA-2X40P 48.26 49.53
A1274WVA-2X17P 19.05 20.32 A1274WVA-2X41P 49.53 50.80
A1274WVA-2X18P 20.32 21.59 A1274WVA-2X42P 50.80 52.07
A1274WVA-2X19P 21.59 22.86 A1274WVA-2X43P 52.07 53.34
A1274WVA-2X20P 22.86 24.13 A1274WVA-2X44P 53.34 54.61
A1274WVA-2X21P 24.13 25.40 A1274WVA-2X45P 54.61 55.88
A1274WVA-2X22P 25.40 26.67 A1274WVA-2X46P 55.88 57.15
A1274WVA-2X23P 26.67 27.94 A1274WVA-2X47P 57.15 58.42
A1274WVA-2X24P 27.94 29.21 A1274WVA-2X48P 58.42 59.69
A1274WVA-2X25P 29.21 30.48 A1274WVA-2X49P 59.69 60.96
A1274WVA-2X26P 30.48 31.75 A1274WVA-2X50P 60.96 62.23
31.75 33.02 62.23 63.50

Unit:mm

A 1 2 7 4 W VA - S - 2 1.27mm X 2.54mm pitch 180° Dual Row Pin Header
- SMT TYPE
Reference lnformations:

*Material: Pin: Brass/Gold-flash Ordering Information & Dimensions:
Wafer: Nylon 6T,UL94V-0
PART NO. Dimensions PART NO. Dimensions
*Optional Dim. available but MOQ requested AB AB
A1274WVA-S-2X27P
* A1274WVA-S-2X03P 2.54 3.81 A1274WVA-S-2X28P 33.02 34.29
A1274WVA-S-2X29P 34.29 35.56
A1274WVA-S-2X04P 3.81 5.08 A1274WVA-S-2X30P 35.56 36.83
A1274WVA-S-2X31P 36.83 38.10
A1274WVA-S-2X05P 5.08 6.35 A1274WVA-S-2X32P 38.10 39.37
A1274WVA-S-2X33P 39.37 40.64
A1274WVA-S-2X06P 6.35 7.62 A1274WVA-S-2X34P 40.64 41.91
A1274WVA-S-2X35P 41.91 43.18
A1274WVA-S-2X07P 7.62 8.89 A1274WVA-S-2X36P 43.18 44.45
A1274WVA-S-2X37P 44.45 45.72
A1274WVA-S-2X08P 8.89 10.16 A1274WVA-S-2X38P 45.72 46.99
A1274WVA-S-2X39P 46.99 48.26
A1274WVA-S-2X09P 10.16 11.43 A1274WVA-S-2X40P 48.26 49.53
A1274WVA-S-2X41P 49.53 50.80
A1274WVA-S-2X10P 11.43 12.70 A1274WVA-S-2X42P 50.80 52.07
A1274WVA-S-2X43P 52.07 53.34
A1274WVA-S-2X11P 12.70 13.97 A1274WVA-S-2X44P 53.34 54.61
A1274WVA-S-2X45P 54.61 55.88
A1274WVA-S-2X12P 13.97 15.24 A1274WVA-S-2X46P 55.88 57.15
A1274WVA-S-2X47P 57.15 58.42
A1274WVA-S-2X13P 15.24 16.51 A1274WVA-S-2X48P 58.42 59.69
A1274WVA-S-2X49P 59.69 60.96
A1274WVA-S-2X14P 16.51 17.78 A1274WVA-S-2X50P 60.96 62.23
62.23 63.50
A1274WVA-S-2X15P 17.78 19.05
Unit:mm
A1274WVA-S-2X16P 19.05 20.32

A1274WVA-S-2X17P 20.32 21.59

A1274WVA-S-2X18P 21.59 22.86

A1274WVA-S-2X19P 22.86 24.13

A1274WVA-S-2X20P 24.13 25.40

A1274WVA-S-2X21P 25.40 26.67

A1274WVA-S-2X22P 26.67 27.94

A1274WVA-S-2X23P 27.94 29.21

A1274WVA-S-2X24P 29.21 30.48

A1274WVA-S-2X25P 30.48 31.75

A1274WVA-S-2X26P 31.75 33.02
