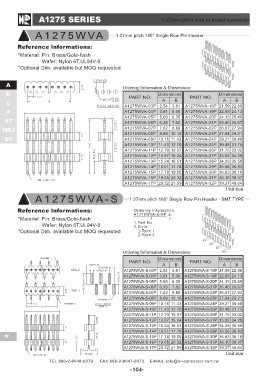

A1275 SERIES 1.27mm pitch wire to board connector

A 1 2 7 5 W VA 1.27mm pitch 180° Single Row Pin Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0

*Optional Dim. available but MOQ requested

A Ordering Information & Dimensions:
B
C PART NO. Dimensions PART NO. Dimensions
F AB AB
ST
HRJ A1275WVA-03P 2.54 3.81 A1275WVA-18P 21.59 22.86
DC
A1275WVA-04P 3.81 5.08 A1275WVA-19P 22.86 24.13
A1275WVA-05P 5.08 6.35 A1275WVA-20P 24.13 25.40
A1275WVA-06P 6.35 7.62 A1275WVA-21P 25.40 26.67
A1275WVA-07P 7.62 8.89 A1275WVA-22P 26.67 27.94
A1275WVA-08P 8.89 10.16 A1275WVA-23P 27.94 29.21

A1275WVA-09P 10.16 11.43 A1275WVA-24P 29.21 30.48
A1275WVA-10P 11.43 12.70 A1275WVA-25P 30.48 31.75
A1275WVA-11P 12.70 13.97 A1275WVA-26P 31.75 33.02
A1275WVA-12P 13.97 15.24 A1275WVA-27P 33.02 34.29
A1275WVA-13P 15.24 16.51 A1275WVA-28P 34.29 35.56

A1275WVA-14P 16.51 17.78 A1275WVA-29P 35.56 36.83
A1275WVA-15P 17.78 19.05 A1275WVA-30P 36.83 38.10
A1275WVA-16P 19.05 20.32 A1275WVA-31P 38.10 39.37
A1275WVA-17P 20.32 21.59 A1275WVA-32P 39.37 40.64

Unit:mm

A 1 2 7 5 W VA - S 1.27mm pitch 180° Single Row Pin Header - SMT TYPE

Reference lnformations: Ordering Information:
A1275WVA-S-XP ＊
*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0 12

*Optional Dim. available but MOQ requested 1.Part No.
2.Style:

1-Type 1
2-Type 2

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
AB AB

A1275WVA-S-03P 2.54 3.81 A1275WVA-S-18P 21.59 22.86

A1275WVA-S-04P 3.81 5.08 A1275WVA-S-19P 22.86 24.13

A1275WVA-S-05P 5.08 6.35 A1275WVA-S-20P 24.13 25.40

A1275WVA-S-06P 6.35 7.62 A1275WVA-S-21P 25.40 26.67

A1275WVA-S-07P 7.62 8.89 A1275WVA-S-22P 26.67 27.94

A1275WVA-S-08P 8.89 10.16 A1275WVA-S-23P 27.94 29.21

A1275WVA-S-09P 10.16 11.43 A1275WVA-S-24P 29.21 30.48

A1275WVA-S-10P 11.43 12.70 A1275WVA-S-25P 30.48 31.75

A1275WVA-S-11P 12.70 13.97 A1275WVA-S-26P 31.75 33.02

A1275WVA-S-12P 13.97 15.24 A1275WVA-S-27P 33.02 34.29

A1275WVA-S-13P 15.24 16.51 A1275WVA-S-28P 34.29 35.56

A1275WVA-S-14P 16.51 17.78 A1275WVA-S-29P 35.56 36.83

* A1275WVA-S-15P 17.78 19.05 A1275WVA-S-30P 36.83 38.10
A1275WVA-S-16P 19.05 20.32 A1275WVA-S-31P 38.10 39.37
A1275WVA-S-17P 20.32 21.59 A1275WVA-S-32P 39.37 40.64

Unit:mm
