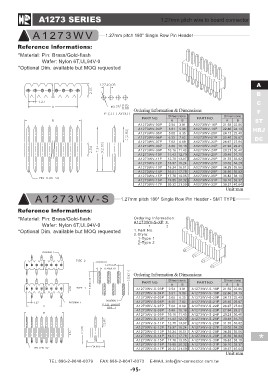

A1273 SERIES 1.27mm pitch wire to board connector

A1273WV 1.27mm pitch 180° Single Row Pin Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0

*Optional Dim. available but MOQ requested

Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
AB AB F
A1273WV-03P A1273WV-18P ST
A1273WV-04P 2.54 3.81 A1273WV-19P 21.59 22.86 HRJ
A1273WV-05P 3.81 5.08 A1273WV-20P 22.86 24.13 DC
A1273WV-06P 5.08 6.35 A1273WV-21P 24.13 25.40
A1273WV-07P 6.35 7.62 A1273WV-22P 25.40 26.67
A1273WV-08P 7.62 8.89 A1273WV-23P 26.67 27.94
A1273WV-09P 8.89 10.16 A1273WV-24P 27.94 29.21
A1273WV-10P 10.16 11.43 A1273WV-25P 29.21 30.48
A 1 2 7 3 W V- 11 P 11.43 12.70 A1273WV-26P 30.48 31.75
A1273WV-12P 12.70 13.97 A1273WV-27P 31.75 33.02
A1273WV-13P 13.97 15.24 A1273WV-28P 33.02 34.29
A1273WV-14P 15.24 16.51 A1273WV-29P 34.29 35.56
A1273WV-15P 16.51 17.78 A1273WV-30P 35.56 36.83
A1273WV-16P 17.78 19.05 A1273WV-31P 36.83 38.10
A1273WV-17P 19.05 20.32 A1273WV-32P 38.10 39.37
20.32 21.59 39.37 40.64

Unit:mm

A1273WV-S 1.27mm pitch 180° Single Row Pin Header - SMT TYPE

Reference lnformations: Ordering Information:
A1273WV-S-XP ＊
*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0 12

*Optional Dim. available but MOQ requested 1.Part No.
2.Style:

1-Type 1
2-Type 2

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions *
AB AB
A1273WV-S-03P A1273WV-S-18P
A1273WV-S-04P 2.54 3.81 A1273WV-S-19P 21.59 22.86
A1273WV-S-05P 3.81 5.08 A1273WV-S-20P 22.86 24.13
A1273WV-S-06P 5.08 6.35 A1273WV-S-21P 24.13 25.40
A1273WV-S-07P 6.35 7.62 A1273WV-S-22P 25.40 26.67
A1273WV-S-08P 7.62 8.89 A1273WV-S-23P 26.67 27.94
A1273WV-S-09P 8.89 10.16 A1273WV-S-24P 27.94 29.21
A1273WV-S-10P 10.16 11.43 A1273WV-S-25P 29.21 30.48
A 1 2 7 3 W V- S - 11 P 11.43 12.70 A1273WV-S-26P 30.48 31.75
A1273WV-S-12P 12.70 13.97 A1273WV-S-27P 31.75 33.02
A1273WV-S-13P 13.97 15.24 A1273WV-S-28P 33.02 34.29
A1273WV-S-14P 15.24 16.51 A1273WV-S-29P 34.29 35.56
A1273WV-S-15P 16.51 17.78 A1273WV-S-30P 35.56 36.83
A1273WV-S-16P 17.78 19.05 A1273WV-S-31P 36.83 38.10
A1273WV-S-17P 19.05 20.32 A1273WV-S-32P 38.10 39.37
20.32 21.59 39.37 40.64

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
