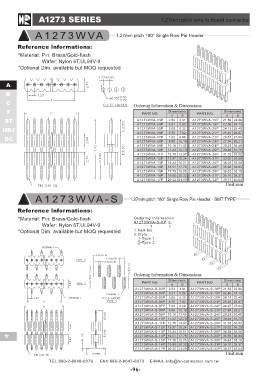

A1273 SERIES
A 1 2 7 3 W VA 1.27mm pitch 180° Single Row Pin Header
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0
*Optional Dim. available but MOQ requested
A Ordering Information & Dimensions:
B
C PART NO.
F AB
ST
HRJ
DC
A 1 2 7 3 W VA - S
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0
*Optional Dim. available but MOQ requested
* A1273WVA-S-14P 16.51 17.78
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-96-
1.27mm pitch wire to board connector
Dimensions PART NO. Dimensions
AB
A 1 2 7 3 W VA - 0 3 P A 1 2 7 3 W VA - 1 8 P
A 1 2 7 3 W VA - 0 4 P 2.54 3.81 A 1 2 7 3 W VA - 1 9 P 21.59 22.86
A 1 2 7 3 W VA - 0 5 P 3.81 5.08 A 1 2 7 3 W VA - 2 0 P 22.86 24.13
A 1 2 7 3 W VA - 0 6 P 5.08 6.35 A 1 2 7 3 W VA - 2 1 P 24.13 25.40
A 1 2 7 3 W VA - 0 7 P 6.35 7.62 A 1 2 7 3 W VA - 2 2 P 25.40 26.67
A 1 2 7 3 W VA - 0 8 P 7.62 8.89 A 1 2 7 3 W VA - 2 3 P 26.67 27.94
A 1 2 7 3 W VA - 0 9 P 8.89 10.16 A 1 2 7 3 W VA - 2 4 P 27.94 29.21
A 1 2 7 3 W VA - 1 0 P 10.16 11.43 A 1 2 7 3 W VA - 2 5 P 29.21 30.48
A 1 2 7 3 W VA - 11 P 11.43 12.70 A 1 2 7 3 W VA - 2 6 P 30.48 31.75
A 1 2 7 3 W VA - 1 2 P 12.70 13.97 A 1 2 7 3 W VA - 2 7 P 31.75 33.02
A 1 2 7 3 W VA - 1 3 P 13.97 15.24 A 1 2 7 3 W VA - 2 8 P 33.02 34.29
A 1 2 7 3 W VA - 1 4 P 15.24 16.51 A 1 2 7 3 W VA - 2 9 P 34.29 35.56
A 1 2 7 3 W VA - 1 5 P 16.51 17.78 A 1 2 7 3 W VA - 3 0 P 35.56 36.83
A 1 2 7 3 W VA - 1 6 P 17.78 19.05 A 1 2 7 3 W VA - 3 1 P 36.83 38.10
A 1 2 7 3 W VA - 1 7 P 19.05 20.32 A 1 2 7 3 W VA - 3 2 P 38.10 39.37
20.32 21.59 39.37 40.64
Unit:mm
1.27mm pitch 180° Single Row Pin Header - SMT TYPE
Ordering Information:
A1273WVA-S-XP ＊
12
1.Part No.
2.Style:
1-Type 1
2-Type 2
Ordering Information & Dimensions:
PART NO. Dimensions PART NO. Dimensions
AB AB
A1273WVA-S-03P 2.54 3.81 A1273WVA-S-18P 21.59 22.86
A1273WVA-S-04P 3.81 5.08 A1273WVA-S-19P 22.86 24.13
A1273WVA-S-05P 5.08 6.35 A1273WVA-S-20P 24.13 25.40
A1273WVA-S-06P 6.35 7.62 A1273WVA-S-21P 25.40 26.67
A1273WVA-S-07P 7.62 8.89 A1273WVA-S-22P 26.67 27.94
A1273WVA-S-08P 8.89 10.16 A1273WVA-S-23P 27.94 29.21
A 1273WVA-S-09P 10.16 11.43 A 1273WVA-S-24P 29.21 30.48
A 1273WVA-S-10P 11.43 12.70 A 1273WVA-S-25P 30.48 31.75
A1273WVA-S-11P 12.70 13.97 A1273WVA-S-26P 31.75 33.02
A1273WVA-S-12P 13.97 15.24 A1273WVA-S-27P 33.02 34.29
A1273WVA-S-13P 15.24 16.51 A1273WVA-S-28P 34.29 35.56
A1273WVA-S-15P 17.78 19.05 A1273WVA-S-29P 35.56 36.83
A1273WVA-S-16P 19.05 20.32 A1273WVA-S-30P 36.83 38.10
A1273WVA-S-31P 38.10 39.37
A1273WVA-S-17P 20.32 21.59 A1273WVA-S-32P 39.37 40.64
Unit:mm
