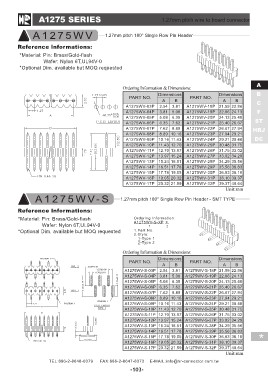

A1275 SERIES 1.27mm pitch wire to board connector

A1275WV 1.27mm pitch 180° Single Row Pin Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0

*Optional Dim. available but MOQ requested

Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
AB F
AB ST
A1275WV-03P 2.54 3.81 A1275WV-18P 21.59 22.86 HRJ
22.86 24.13 DC
A1275WV-04P 3.81 5.08 A1275WV-19P 24.13 25.40
25.40 26.67 *
A1275WV-05P 5.08 6.35 A1275WV-20P 26.67 27.94
27.94 29.21
A1275WV-06P 6.35 7.62 A1275WV-21P 29.21 30.48
30.48 31.75
A1275WV-07P 7.62 8.89 A1275WV-22P 31.75 33.02
33.02 34.29
A1275WV-08P 8.89 10.16 A1275WV-23P 34.29 35.56
35.56 36.83
A1275WV-09P 10.16 11.43 A1275WV-24P 36.83 38.10
38.10 39.37
A1275WV-10P 11.43 12.70 A1275WV-25P 39.37 40.64

A1275WV-11P 12.70 13.97 A1275WV-26P Unit:mm

A1275WV-12P 13.97 15.24 A1275WV-27P

A1275WV-13P 15.24 16.51 A1275WV-28P

A1275WV-14P 16.51 17.78 A1275WV-29P

A1275WV-15P 17.78 19.05 A1275WV-30P

A1275WV-16P 19.05 20.32 A1275WV-31P

A1275WV-17P 20.32 21.59 A1275WV-32P

A1275WV-S 1.27mm pitch 180° Single Row Pin Header - SMT TYPE

Reference lnformations: Ordering Information:
A1275WV-S-XP ＊
*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0 12

*Optional Dim. available but MOQ requested 1.Part No.
2.Style:

1-Type 1
2-Type 2

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
AB AB

A1275WV-S-03P 2.54 3.81 A1275WV-S-18P 21.59 22.86

A1275WV-S-04P 3.81 5.08 A1275WV-S-19P 22.86 24.13

A1275WV-S-05P 5.08 6.35 A1275WV-S-20P 24.13 25.40

A1275WV-S-06P 6.35 7.62 A1275WV-S-21P 25.40 26.67

A1275WV-S-07P 7.62 8.89 A1275WV-S-22P 26.67 27.94

A1275WV-S-08P 8.89 10.16 A1275WV-S-23P 27.94 29.21

A1275WV-S-09P 10.16 11.43 A1275WV-S-24P 29.21 30.48

A1275WV-S-10P 11.43 12.70 A1275WV-S-25P 30.48 31.75

A1275WV-S-11P 12.70 13.97 A1275WV-S-26P 31.75 33.02

A1275WV-S-12P 13.97 15.24 A1275WV-S-27P 33.02 34.29

A1275WV-S-13P 15.24 16.51 A1275WV-S-28P 34.29 35.56

A1275WV-S-14P 16.51 17.78 A1275WV-S-29P 35.56 36.83

A1275WV-S-15P 17.78 19.05 A1275WV-S-30P 36.83 38.10

A1275WV-S-16P 19.05 20.32 A1275WV-S-31P 38.10 39.37

A1275WV-S-17P 20.32 21.59 A1275WV-S-32P 39.37 40.64

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-103-
