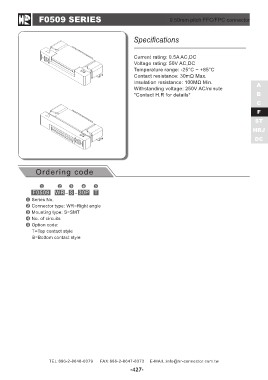

F0509 SERIES 0.50mm pitch FFC/FPC connector
Ordering code Specifications
F0509 WR - S - 30P T Current rating: 0.5A AC,DC A
Voltage rating: 50V AC,DC B
Series No. Temperature range: -25°C ~ +85°C C
Connector type: WR=Right angle Contact resistance: 30mΩ Max. F
Mounting type: S=SMT Insulation resistance: 100MΩ Min. ST
No. of circuits Withstanding voltage: 250V AC/minute HRJ
Option code: *Contact H.R for details* DC
T=Top contact style
B=Bottom contact style
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-427-
