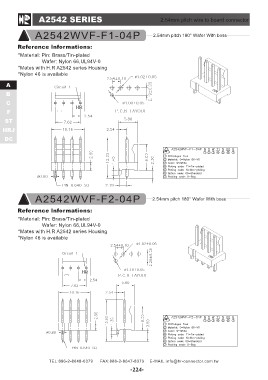

A2542 SERIES                            2.54mm pitch wire to board connector

         A2542WVF-F1-04P                         2.54mm pitch 180° Wafer With boss

        Reference lnformations:
         *Material: Pin: Brass/Tin-plated

                        Wafer: Nylon 66,UL94V-0
         *Mates with H.R A2542 series Housing
         *Nylon 46 is available

  A
  B
  C
  F
 ST
HRJ
 DC

     A2542WVF-F2-04P                             2.54mm pitch 180° Wafer With boss

Reference lnformations:

*Material: Pin: Brass/Tin-plated
              Wafer: Nylon 66,UL94V-0

*Mates with H.R A2542 series Housing
*Nylon 46 is available

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
