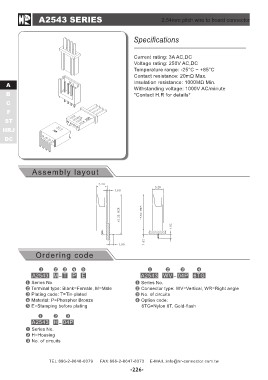

A2543 SERIES 2.54mm pitch wire to board connector
A Specifications
B
C Current rating: 3A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1000V AC/minute
Assembly layout *Contact H.R for details*
Ordering code A2543 WV - 04P 6TG
A2543 M - T P E Series No.
Connector type: WV=Vertical, WR=Right angle
Series No. No. of circuits
Terminal type: Blank=Female, M=Male Option code:
Plating code: T=Tin-plated 6TG=Nylon 6T, Gold-flash
Material: P=Phosphor Bronze
E=Stamping before plating
A2543 H - 04P
Series No.
H=Housing
No. of circuits
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-226-
