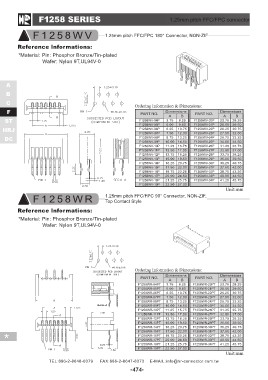

F1258 SERIES 1.25mm pitch FFC/FPC connector

F1258WV 1.25mm pitch FFC/FPC 180° Connector, NON-ZIF

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 9T,UL94V-0

A

B

C Ordering Information & Dimensions:
F
ST PART NO. Dimensions PART NO. Dimensions
HRJ AB AB
DC F1258WV-04P F1258WV-20P
F1258WV-05P 3.75 8.25 F1258WV-21P 23.75 28.25
F1258WV-06P 5.00 9.50 F1258WV-22P 25.00 29.50
F1258WV-07P 6.25 10.75 F1258WV-23P 26.25 30.75
F1258WV-08P 7.50 12.00 F1258WV-24P 27.50 32.00
F1258WV-09P 8.75 13.25 F1258WV-25P 28.75 33.25
F1258WV-10P 10.00 14.50 F1258WV-26P 30.00 34.50
F1258WV-11P 11.25 15.75 F1258WV-27P 31.25 35.75
F1258WV-12P 12.50 17.00 F1258WV-28P 32.50 37.00
F1258WV-13P 13.75 18.25 F1258WV-29P 33.75 38.25
F1258WV-14P 15.00 19.50 F1258WV-30P 35.00 39.50
F1258WV-15P 16.25 20.75 F1258WV-31P 36.25 40.75
F1258WV-16P 17.50 22.00 F1258WV-32P 37.50 42.00
F1258WV-17P 18.75 23.25 F1258WV-33P 38.75 43.25
F1258WV-18P 20.00 24.50 F1258WV-34P 40.00 44.50
F1258WV-19P 21.25 25.75 41.25 45.75
22.50 27.00
Unit:mm

F1258WR 1.25mm pitch FFC/FPC 90° Connector, NON-ZIF,
Top Contact Style

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 9T,UL94V-0

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
AB AB

F1258WR-04PT 3.75 8.25 F1258WR-20PT 23.75 28.25

F1258WR-05PT 5.00 9.50 F1258WR-21PT 25.00 29.50

F1258WR-06PT 6.25 10.75 F1258WR-22PT 26.25 30.75

F1258WR-07PT 7.50 12.00 F1258WR-23PT 27.50 32.00

F1258WR-08PT 8.75 13.25 F1258WR-24PT 28.75 33.25

F1258WR-09PT 10.00 14.50 F1258WR-25PT 30.00 34.50

F1258WR-10PT 11.25 15.75 F1258WR-26PT 31.25 35.75

F1258WR-11PT 12.50 17.00 F1258WR-27PT 32.50 37.00

F1258WR-12PT 13.75 18.25 F1258WR-28PT 33.75 38.25

F1258WR-13PT 15.00 19.50 F1258WR-29PT 35.00 39.50

F1258WR-14PT 16.25 20.75 F1258WR-30PT 36.25 40.75

F1258WR-15PT 17.50 22.00 F1258WR-31PT 37.50 42.00

* F1258WR-16PT 18.75 23.25 F1258WR-32PT 38.75 43.25
F1258WR-17PT 20.00 24.50 F1258WR-33PT 40.00 44.50
F1258WR-18PT 21.25 25.75 F1258WR-34PT 41.25 45.75

F1258WR-19PT 22.50 27.00

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
