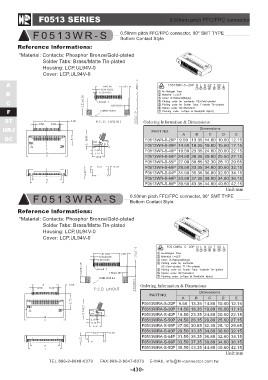

F0513 SERIES 0.50mm pitch FFC/FPC connector

F0513WR-S 0.50mm pitch FFC/FPC connector, 90° SMT TYPE
Bottom Contact Style

Reference lnformations:

*Material: Contacts: Phosphor Bronze/Gold-plated
Solder Tabs: Brass/Matte Tin-plated
Housing: LCP,UL94V-0
Cover: LCP,UL94V-0

A

B

C
F

ST Ordering Information & Dimensions:
HRJ
DC PART NO. Dimensions
ABCDE

F0513WR-S-20P 9.50 13.35 14.80 10.60 12.15

F0513WR-S-30P 14.50 18.35 19.80 15.60 17.15

F0513WR-S-40P 19.50 23.35 24.80 20.60 22.15

F0513WR-S-50P 24.50 28.35 29.80 25.60 27.15

F0513WR-S-55P 27.00 30.85 32.30 28.10 29.65

F0513WR-S-60P 29.50 33.35 34.80 30.60 32.15

F0513WR-S-64P 31.50 35.35 36.80 32.60 34.15

F0513WR-S-68P 33.50 37.35 38.80 34.60 36.15

F0513WR-S-80P 39.50 43.35 44.80 40.60 42.15

Unit:mm

F0513WRA-S 0.50mm pitch FFC/FPC connector, 90° SMT TYPE
Bottom Contact Style

Reference lnformations:

*Material: Contacts: Phosphor Bronze/Gold-plated
Solder Tabs: Brass/Matte Tin-plated
Housing: LCP,UL94V-0
Cover: LCP,UL94V-0

Ordering Information & Dimensions:

PART NO. Dimensions
ABCDE

F0513WRA-S-20P 9.50 13.35 14.80 10.60 12.15

F0513WRA-S-30P 14.50 18.35 19.80 15.60 17.15

F0513WRA-S-40P 19.50 23.35 24.80 20.60 22.15

F0513WRA-S-50P 24.50 28.35 29.80 25.60 27.15

F0513WRA-S-55P 27.00 30.85 32.30 28.10 29.65

F0513WRA-S-60P 29.50 33.35 34.80 30.60 32.15

F0513WRA-S-64P 31.50 35.35 36.80 32.60 34.15

F0513WRA-S-68P 33.50 37.35 38.80 34.60 36.15

F0513WRA-S-80P 39.50 43.35 44.80 40.60 42.15

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-430-
