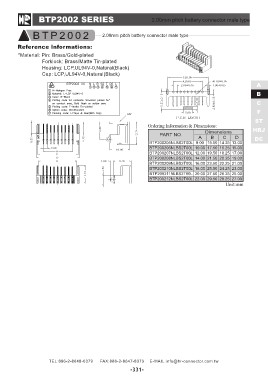

BTP2002 SERIES 2.00mm pitch battery connector male type

BTP2002 2.00mm pitch battery connector male type

Reference lnformations:

*Material: Pin: Brass/Gold-plated
Forklock: Brass/Matte Tin-plated
Housing: LCP,UL94V-0,Natural(Black)
Cap: LCP,UL94V-0,Natural(Black)

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
ABCD F
ST
BTP200205NLBS2T00L 8.00 15.50 14.25 13.00 HRJ
DC

BTP200206NLBS2T00L 10.00 17.50 16.25 15.00
BTP200207NLBS2T00L 12.00 19.50 18.25 17.00

BTP200208NLBS2T00L 14.00 21.50 20.25 19.00
BTP200209NLBS2T00L 16.00 23.50 22.25 21.00

BTP200210NLBS2T00L 18.00 25.50 24.25 23.00
BTP200211NLBS2T00L 20.00 27.50 26.25 25.00

BTP200212NLBS2T00L 22.00 29.50 28.25 27.00

Unit:mm
