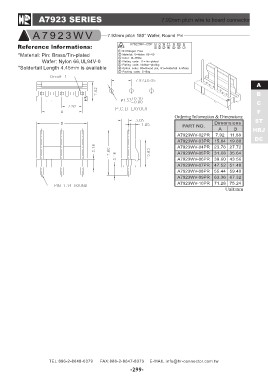

A7923 SERIES 7.92mm pitch wire to board connector
A7923WV 7.92mm pitch 180° Wafer, Round Pin
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Soldertail Length 4.45mm is available
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
AB F
ST
A7923WV-02PR 7.92 11.88 HRJ
DC
A7923WV-03PR 15.84 19.80
A7923WV-04PR 23.76 27.72
A7923WV-05PR 31.68 35.64
A7923WV-06PR 39.60 43.56
A7923WV-07PR 47.52 51.48
A7923WV-08PR 55.44 59.40
A7923WV-09PR 63.36 67.32
A7923WV-10PR 71.28 75.24
Unit:mm
