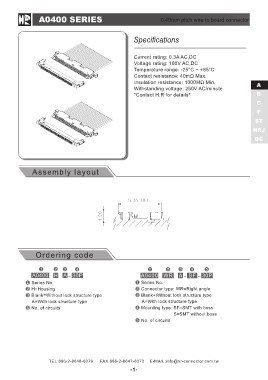

A0400 SERIES 0.40mm pitch wire to board connector
Assembly layout
Specifications
Current rating: 0.3A AC,DC A
Voltage rating: 100V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 40mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 250V AC/minute HRJ
*Contact H.R for details* DC
Ordering code A0400 WR A - SF - 30P
A0400 H A - 30P Series No.
Connector type: WR=Right angle
Series No. Blank=Without lock structure type
H=Housing A=With lock structure type
Blank=Without lock structure type Mounting type: SF=SMT with boss
A=With lock structure type
No. of circuits S=SMT without boss
No. of circuits
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
